Sketch Status
by TEDCF Publishing^®

Runs in Inventor 2014 through the current version.

Sketch Status is a simple but powerful add-in that gives you more control over your sketches.

Open a part or sheet metal part and all the sketches in the file are automatically renamed to show their constraint status.

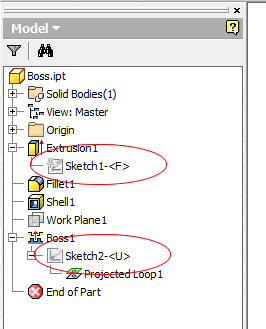

In the example above Sketch1 is fully constrained, and Sketch2 is under-constrained.

If you know the importance of fully constraining all
your sketches, you know how important this addin is.

It's free, so there's no reason you shouldn't try it.
