2D Equation Curves with Autodesk Inventor

By David Melvin, PE, TEDCF Publishing

This short tip will show you how to draw 2D equation curves. You will also learn how to fully constrain equation curves.

We’ll start by drawing the curve for the following equation.

2D Equation Curves with Autodesk Inventor tat41-1

Open a new part file and create a 2D sketch.

2D Equation Curves with Autodesk Inventor tat41-2

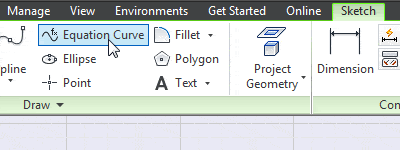

In the Draw panel of the Sketch tab, open the Equation Curve command.

2D Equation Curves with Autodesk Inventor tat41-3

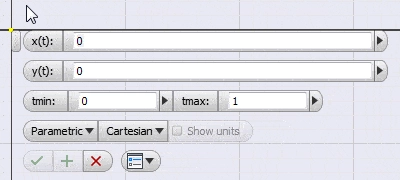

You enter equations as…

Continue Reading

Page 1 of 2
