Adding Arc Length Dimensions with Autodesk Inventor - Page 2

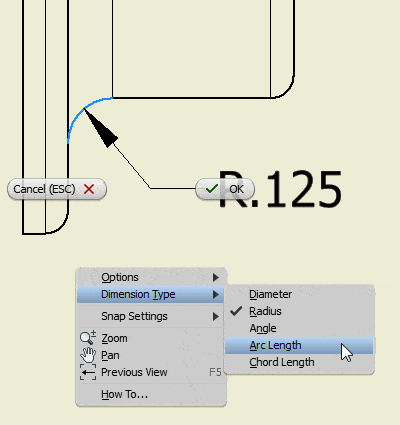

Just as usual, the dimension starts out as a radial dimension. Right click and select Dimension Type - Arc Length.
Notice that you can create a dimension for the Chord Length as well.

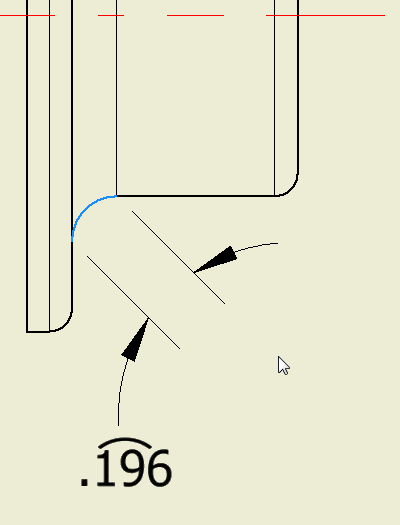

After you select Arc Length, the dimension will look like this.
The arc above the dimension text indicates that it is an arc length dimension.
